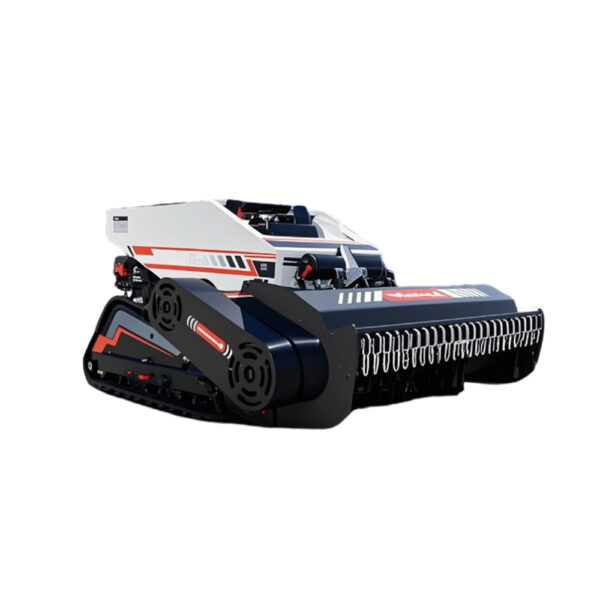

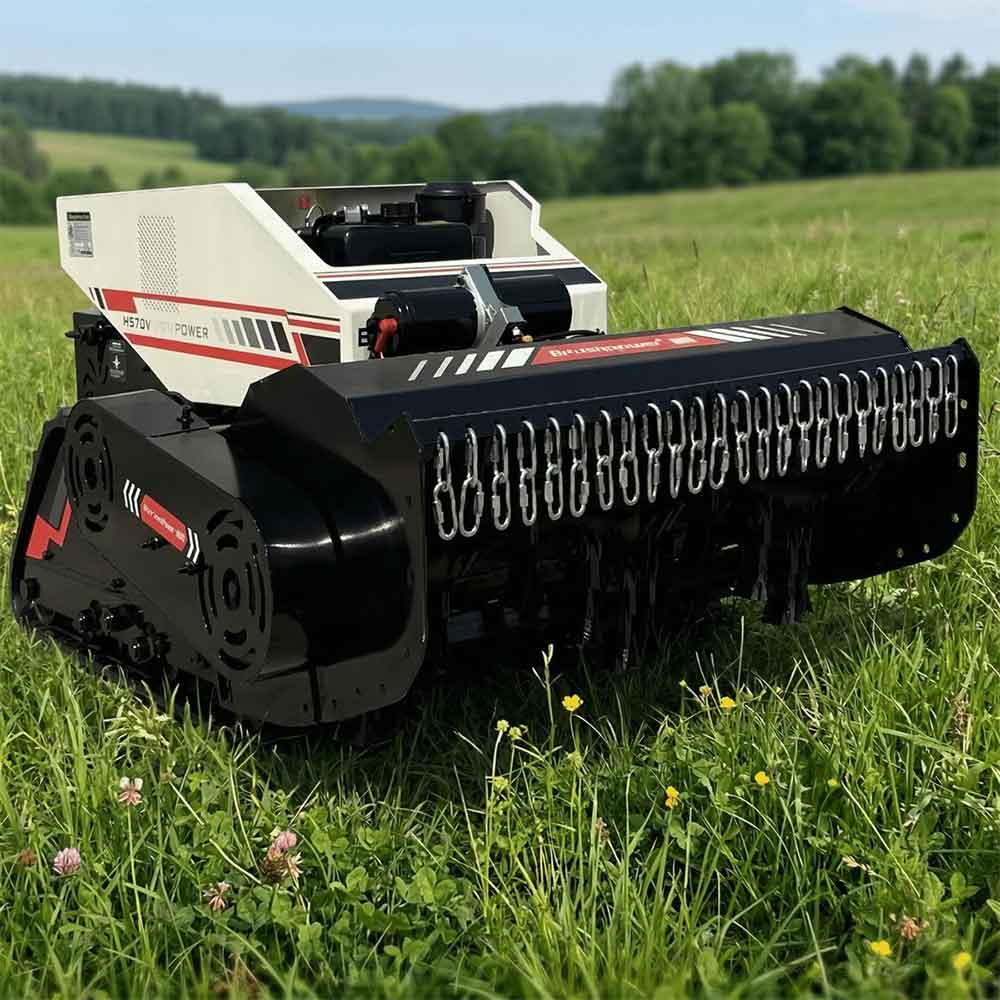

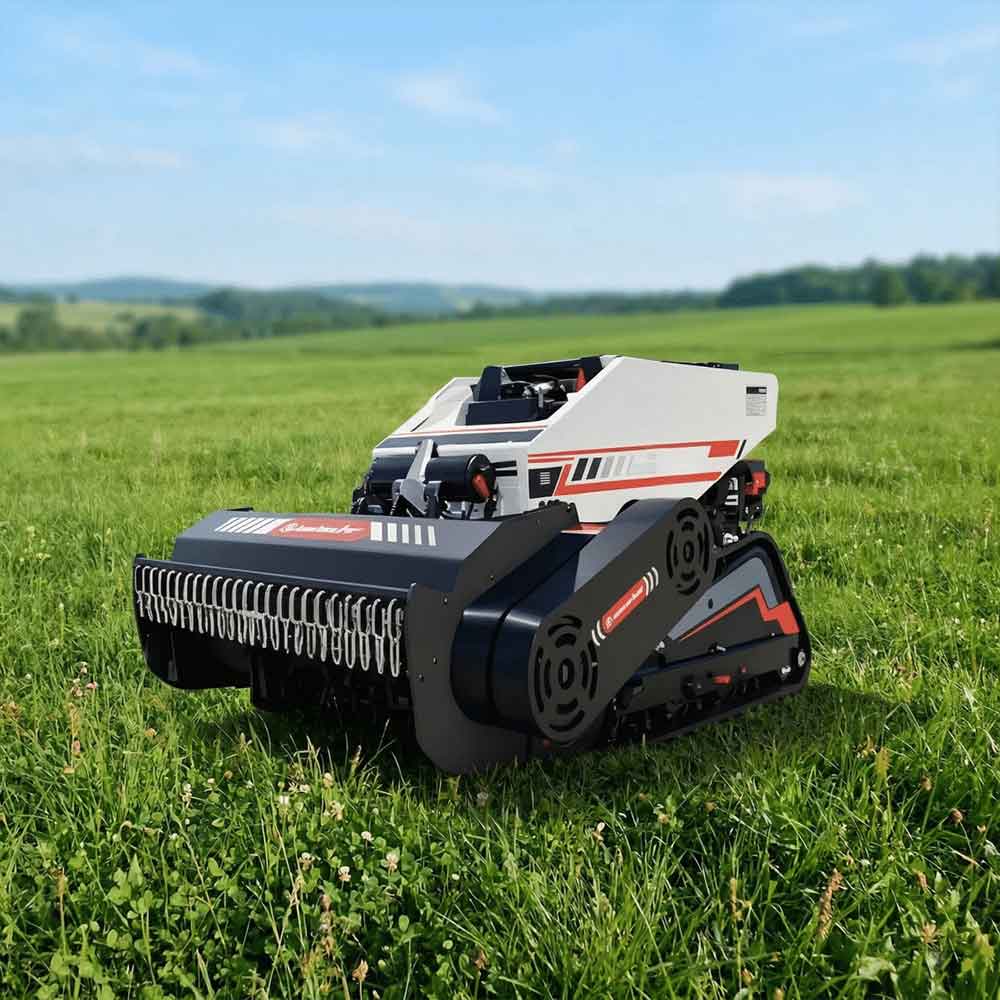

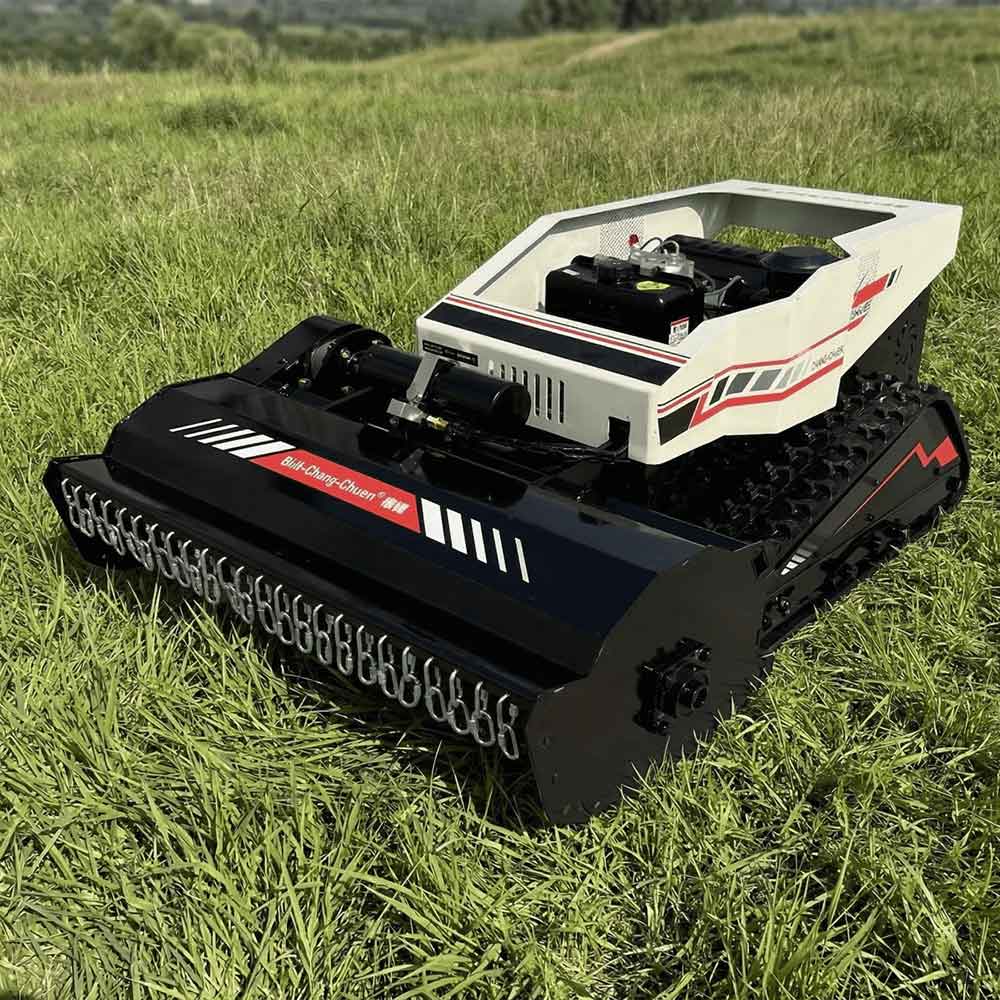

Blade Hammer Mower JLF-R1000

Home / Products /
/
Blade Hammer Mower JLF-R1000

Blade Hammer Mower JLF-R1000

Engineered for construction, agriculture, and multi-scenario operations.
Powerful Engine Output for stable performance even under heavy load.
Multi-Function Capability with a wide range of attachments.
Compact Design & Agile Control suitable for narrow job sites.
Low Fuel Consumption & High Reliability for reduced operation cost.
Enhanced Safety Protection including ROPS, stability system, and reinforced structure.
Get a Quote
官网询盘

Product Advantages

  1. Compact and well-engineered structure

    The machine features a compact structure and rational design, with an automatic floating adjustment system, offering clear advantages in uneven and complex working conditions.

  2. Superior weed cutting and shredding performance

    The blade shaft adopts a reverse-rotation design, significantly improving weed cutting and shredding efficiency.

    Multiple engine options are available, including KOOP series and Loncin series engines.

  3. Fully customizable configuration

    The mower can be customized according to customer requirements, including engine brand, color, model configuration, and other specifications.

  4. Efficient and durable power transmission system

    Equipped with a clutch-type power transmission system to ensure minimal power loss.

    The machine supports self-generated power for longer endurance and uses durable components such as a brushless motor for extended service life.

Product Technical Parameters
Parameter Specification
Standard Engine Locin420 gasoline Engine
Optional Engines Locin459 gasoline engine, Yanmar195F diesel engine, Yanmar1105F diesel engine
Power 12.2
Operation Weight 1050
Machine Dimensions 1470 × 1170 × 670 mm
Machine Weight 343 kg
Cutting Width 1050 mm
Cutting Height 30–200 mm
Starting Method Electric Start / Remote Start
Number of Blades 60 (20 sets × 3 = 60, Vertical Flails, Manganese Steel Alloy, Double-edged)
Generator Yu Shu Generator, 1800W
Working Efficiency 2000-5000 m²/H (can cut small trees 6-7 cm in diameter)
Maximum Slope 60°

Strong Power

Delivers stable and efficient engine output, allowing the machine to handle heavy workloads with consistent performance across various job sites.

Precise Control

Advanced hydraulic and control systems provide smooth, highly responsive handling, making all machine operations much easier and improving overall work accuracy.

Durable Build

Reinforced frame and high-strength components ensure long-term durability, excellent wear resistance, and reliable performance under tough conditions.

Versatile Use

Compatible with multiple attachments, the machine adapts to construction, landscaping, agriculture, and material handling tasks efficiently.

FAQ

How long is the product warranty?

All Shanghai Jinglifeng machinery comes with a standard one-year warranty. Key spare parts can have extended coverage with global after-sales support.

Excavators are suitable for earthwork, construction, and landscaping; skid steer loaders for material handling, cleaning, and landscaping; lawn mowers for lawns, fields, and gardens.

Yes, our machinery is ergonomically designed for easy operation, and manuals and video tutorials help users get started quickly.

Yes, routine inspection and maintenance are recommended, including lubrication, oil changes, and checking wear parts to ensure long-term stable operation.

Shanghai Jinglifeng machinery uses efficient engines with low-noise design and meets international emission standards, suitable for various work environments.

Yes, we provide a full set of original spare parts, with fast logistics delivery to keep machines running continuously.
